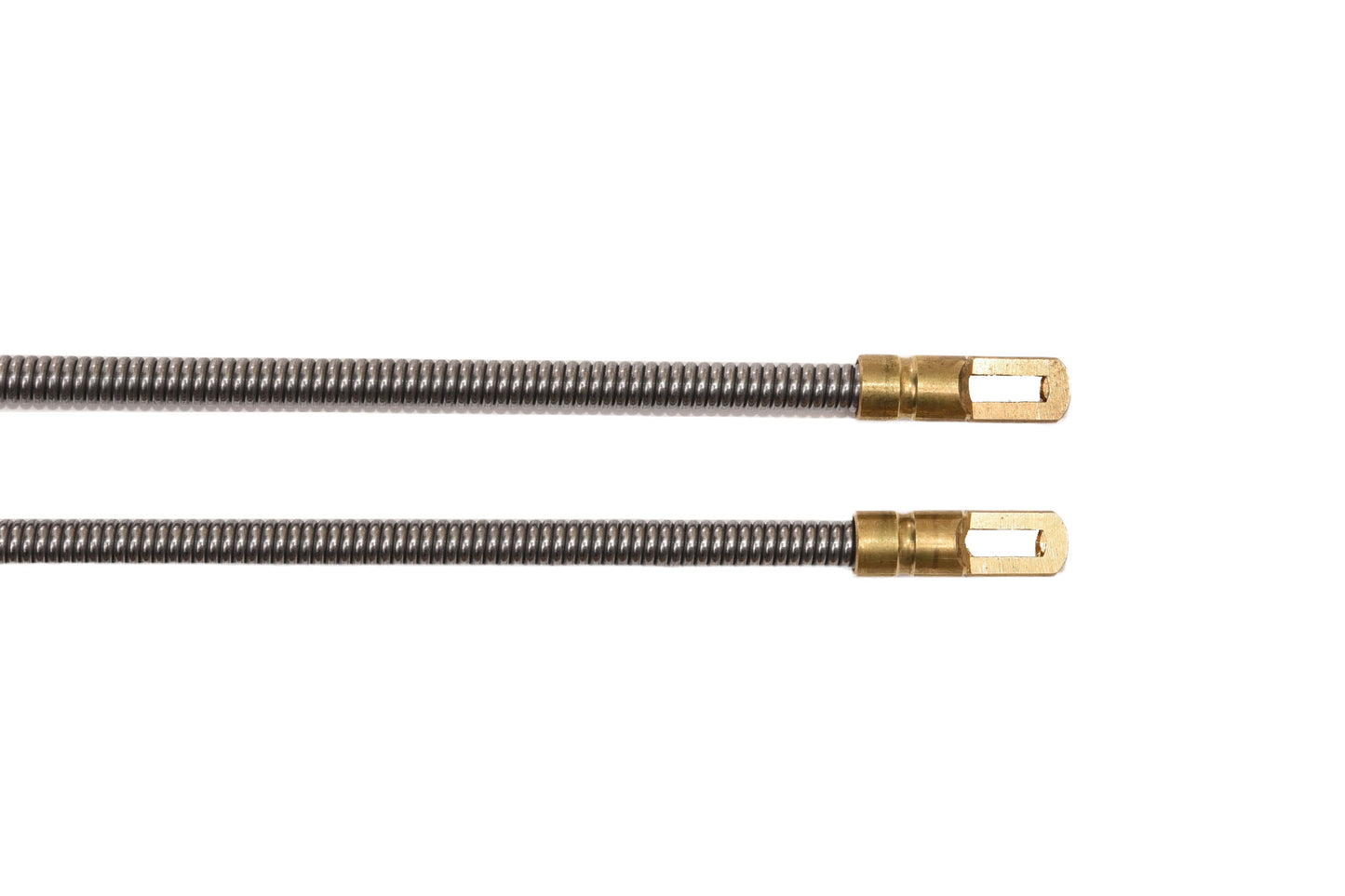

IDEAAL fish tape with inner cable

IDEAAL fish tape with inner cable

Length
Head

The IDEAL fish tape is a cable pulling system for electrical engineering (professional). It is equipped with a plain steel inner cable and is available in different lengths and with different heads.

Properties

  • Suitable for pipes from Ø 16 to 50 mm.
  • The M5 head is suitable for cable pulling sleeves/search spring/coupling piece.
  • The slotted head is suitable for 5 wires.
View full details
Available items
Article no. Length Head Box Weight (kg) EAN
90010 2m Plain head 1 0.215 8715089900104
90110 5m Plain head 30 0.550 8715089901101
90210 10m Plain head 15 1.080 8715089902108
90510 15m Plain head 10 1.585 8715089905109
90810 20m Plain head 8 2.100 8715089908100
91310 25m Plain head 5 2.600 8715089913104
91410 30m Plain head 5 3.225 8715089914101
91710 40m Plain head 1 4.130 8715089917102
91810 50m Plain head 1 5.160 8715089918109
90020 2m 1 Ball head 1 0.215 8715089900203
90120 5m 1 Ball head 30 0.550 8715089901200
90310 10m 1 Ball head 15 1.080 8715089903105
90610 15m 1 Ball head 10 1.585 8715089906106
91110 20m 1 Ball head 8 2.080 8715089911100
91320 25m 1 Ball head 5 2.600 8715089913203
91510 30m 1 Ball head 5 3.095 8715089915108
91720 40m 1 Ball head 1 4.130 8715089917201
91820 50m 1 Ball head 1 5.160 8715089918208
90030 2m 2 Ball heads 1 0.215 8715089900302
90130 5m 2 Ball heads 30 0.550 8715089901309
90410 10m 2 Ball heads 15 1.080 8715089904102
90710 15m 2 Ball heads 10 1.585 8715089907103
91210 20m 2 Ball heads 8 2.080 8715089912107
91340 25m 2 Ball heads 5 2.600 8715089913401
91610 30m 2 Ball heads 5 3.095 8715089916105
91830 40m 2 Ball heads 1 4.130 8715089918307
91920 50m 2 Ball heads 1 5.160 8715089919205
90320 10m 1 M5 Head/slotted head 15 1.080 8715089903204
90620 15m 1 M5 Head/slotted head 10 1.585 8715089906205
91120 20m 1 M5 Head/slotted head 8 2.080 8715089911209
91330 25m 1 M5 Head/slotted head 5 2.600 8715089913302
91620 30m 1 M5 Head/slotted head 5 3.095 8715089916204
91630 40m 1 M5 Head/slotted head 1 4.130 8715089916303
91640 50m 1 M5 Head/slotted head 1 5.160 8715089916402
90321 10m 2 M5 Heads 15 1.080 8715089903211
91121 20m 2 M5 Heads 8 2.080 8715089911216
90330 10m 2 Slotted heads 15 1.080 8715089903303
91130 20m 2 Slotted heads 8 2.080 8715089911308
91135 30m 2 Slotted heads 5 3.095 8715089911353
